Verderflex Ds500
The Ds500 cased tube pump, discover the precision, reliability, and flexibility by joining the growing community of IoT enabled Ds500 Verderflex customers. Explore our...
| Max. flow | 30 l/h |
| Max. discharge pressure | 7 bar |
Verderair e-PURE
The Verderair e-PURE electrically driven double diaphragm pump uses a new kind of technology for diaphragm pumps. This pump series works according to a horizontal fluid flow path, which gives a more energy efficient and less friction loss fluid path. A direct result is reduced maintenance, lower energy costs and a longer life time. The pump housing is manufactured from solid machined PTFE or PE (UHMW). The other wetted parts are made from PEEK and SS 316L or Hastelloy C or Duplex SS. The e-PURE ensures a sustainable solution combined with diaphragm pump advantages.
Verderair e-PURE types
View
 |
 |
|
|
|

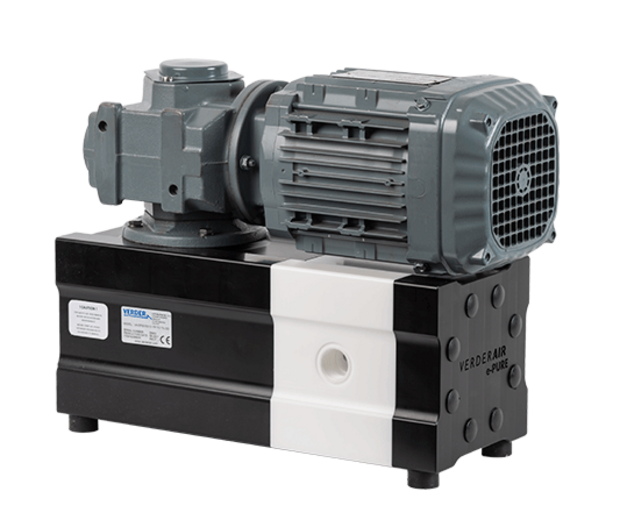

VA-EP30 |
VA-EP50 |
VA-EP100 |
|
| View this pump type | View this pump type | View this pump type | |
| Max. flow |
30 l/min
|
50 l/min
|
100 l/min
|
| Max. discharge pressure |
5 bar
|
5 bar
|
5 bar
|
| Max. particle size |
2 mm
|
2 mm
|
4 mm
|
| Maximum suction lift (wet) |
8.5 m wc
|
9 m wc
|
9 m wc
|
| Maximum suction lift (dry) |
1.6 m wc
|
2.2 m wc
|
5 m wc
|
| Max. Temperature PE |
70 °C
|
70 °C
|
70 °C
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet |
Verderair e-PURE
- Low energy consumption
- Less maintenance - longer lifetime
- Low pulsation
- Low noise level
Verderair e-PURE, now ATEX certified
The Verderair e-PURE, our electrically driven double diaphragm pump, is now ATEX certified! Watch the video to learn more about the e-PURE or read more about it and the ATEX certification in the brochure below.
