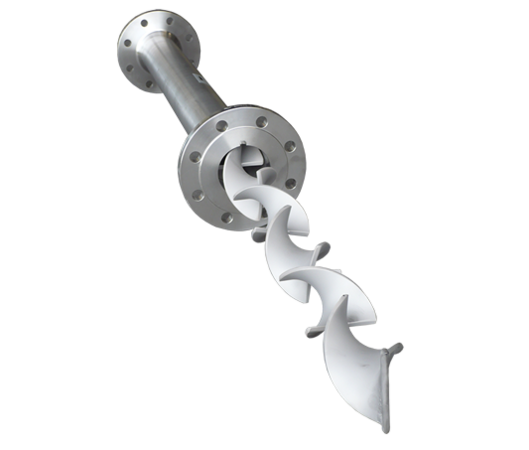

VML

Property
Type of elements	Helicals
Number of elements	Min. 2 - Max. 24
DIN-size	In stainless steel or other metals: • From DN4 to DN800 - other sizes on request * From DN125: elements are made from fl at strips. welded together In PVC. PE. PP. PVDF: • From DN15 to DN150 - other sizes on request * From DN125: elements are made out of
Materials	SS304. SS316. PVC. PE. PP. PVDF – other materials on request
Connections	Flanged DIN. ASA or screwed connectors. sockets. plain end. other on request.
Surface treatment	Pickled (standard) - On request: Electropolishing

Similar à série VMV, além dos elementos; eles são montados dentro da tubulação proporcionando fácil remoção para uma limpeza completa e fácil ou desobstrução. Também disponível com jaqueta (tubulação dupla) para aquecimento ou resfriamento.

• Verdermix Brochure
