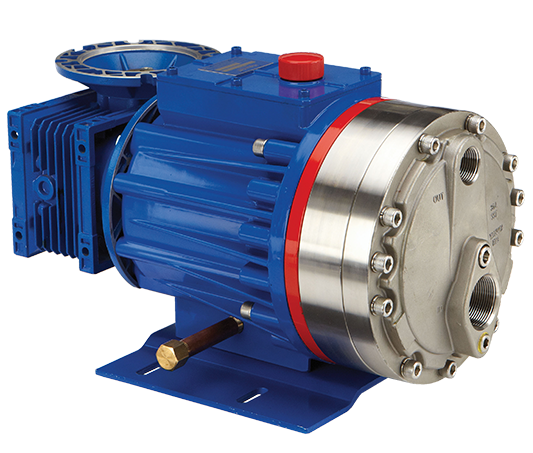

Hydra-Cell P
The WANNER™ Hydra-Cell® Pro P, is designed for dosing in many applications. It is possible to pump a variety of liquids, from pure water to viscous liquids. Frequency-controlled pumps increase the reliability and accuracy of the application. The multi-diaphragm design is linear. Low pulsation flow is guaranteed. The pump complies with the API 675 standard.
Hydra-Cell P types
View
 |
 |
 |
 |
 |
 |
|
|

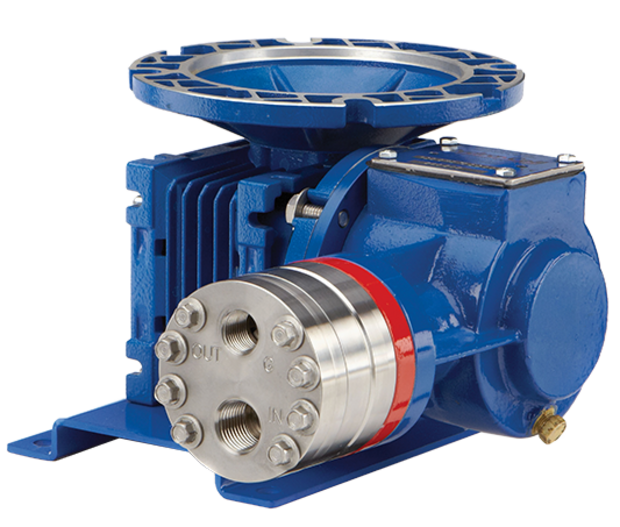

P100 |

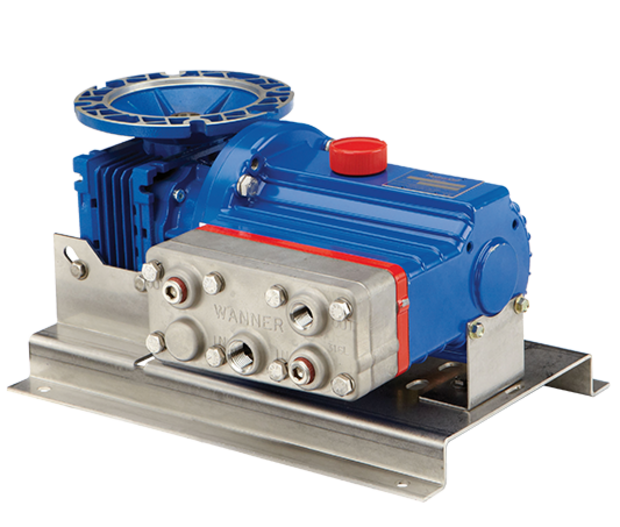

P200 |

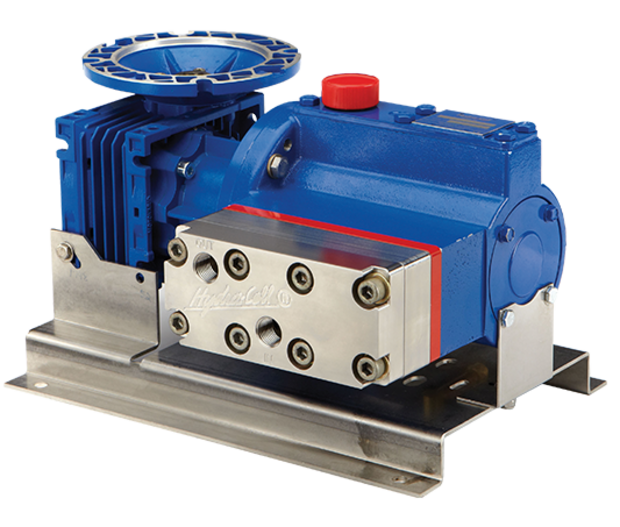

P300 |

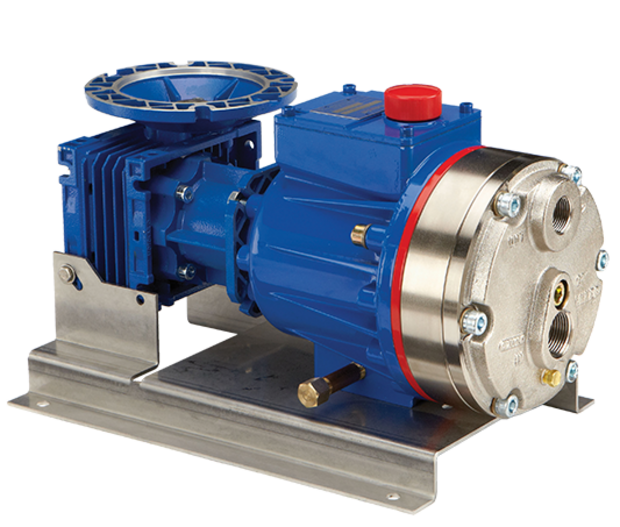

P400 |

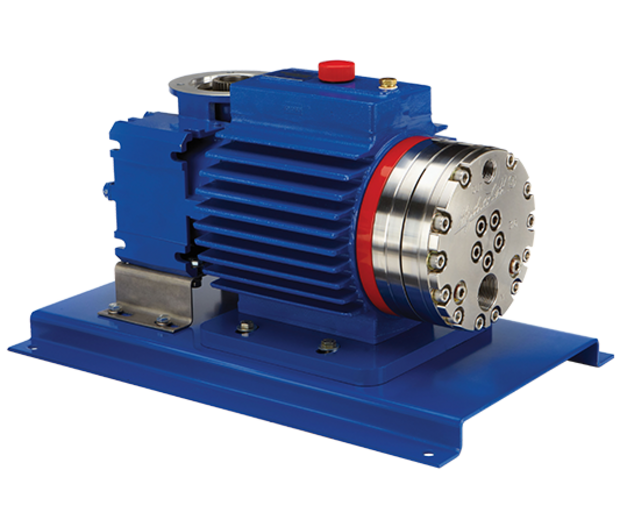

P500 |

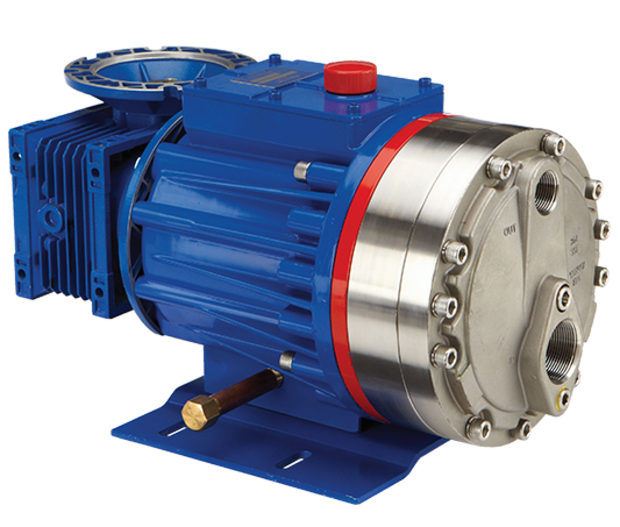

P600 |
|
| View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | |
| Max. flow |
78 l/h
|
237.4 l/h
|
242.1 l/h
|
714.9 l/h
|
1255.1 l/h
|
2634 l/h
|
| Max. discharge pressure |
103 bar
|
103 bar
|
172 bar
|
69 bar
|
172 bar
|
69 bar
|
| Max. temperature |
121 °C
|
121 °C
|
121 °C
|
121 °C
|
121 °C
|
121 °C
|
| Max. particle size |
0.5 mm
|
0.1 mm
|
0.5 mm
|
0.8 mm
|
0.3 mm
|
1.5 mm
|
| Certificates |
ATEX. API 675
|
ATEX. API 675
|
ATEX. API 675
|
ATEX. API 675
|
ATEX. API 675
|
ATEX. API 675
|
| Viscosity |
1000 mPa.s
|
1000 mPa.s
|
1000 mPa.s
|
1000 mPa.s
|
1000 mPa.s
|
1000 mPa.s
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet |
